CNC Machining Guide: Drawings, Tolerances, Cost, and RFQs

Updated August 2026.

This CNC machining guide is a decision reference for converting a part specification into a controlled manufacturing package. It connects process choice, material condition, drawings, tolerances, inspection data, cost drivers, and supplier questions so a buying team can compare like with like.

Bottom line: don’t use a machine label or an instant quote. Start with the function of the part, lock in the controlled geometry, identify the few parameters that control risk, and instruct each vendor to quote the identical evidence package.

This is an informational reference, not a second service catalog. If you have a known part and you’re ready to talk manufacturing scope, refer to Zhenling’s CNC Machining Service Hub. Subsequent sections cover the work that occurs before that meeting: selecting a path, removing drawing ambiguity, establishing an inspection plan, and creating an RFQ that yields comparable answers.

Machining price and cost searches often hide a scope-comparison problem. This guide connects design for CNC machining with the drawing and evidence package needed for a comparable quote.

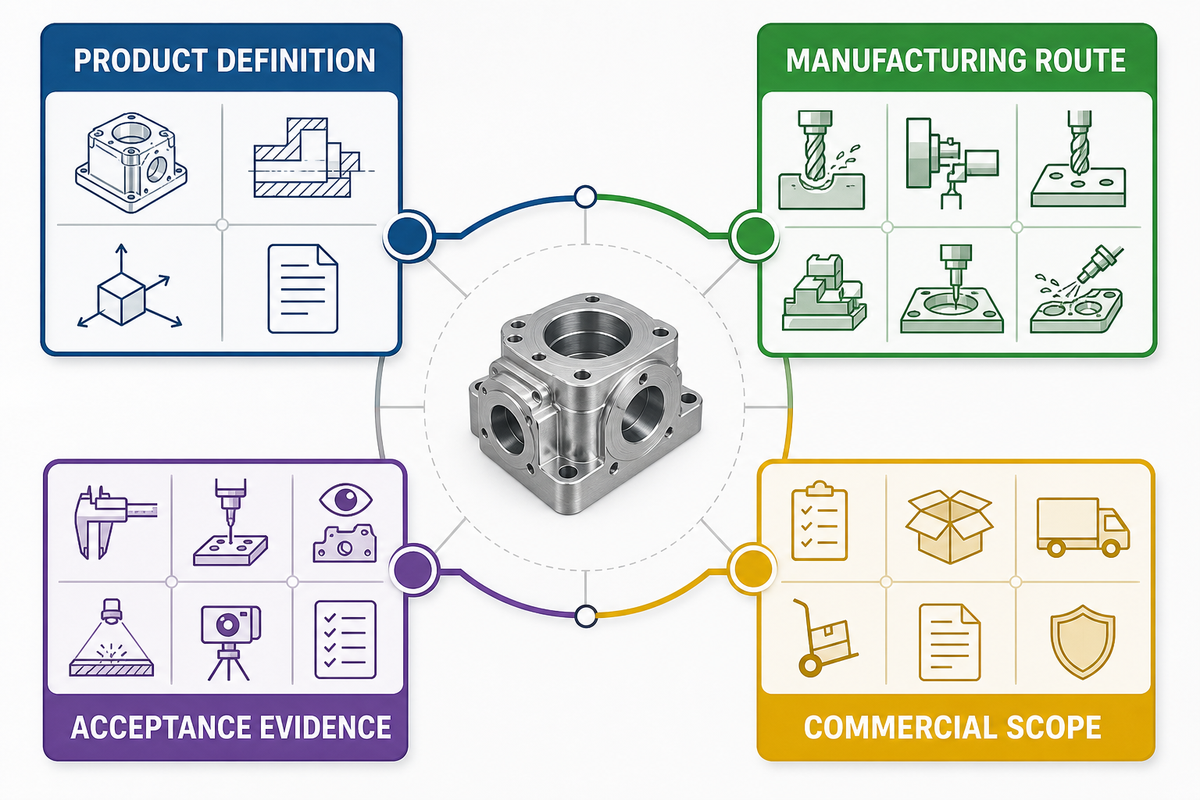

What a CNC Machining Service Actually Covers

A complete CNC machining service involves more than cutting material. It interprets product requirements into a process plan, fixtures the part, programs toolpaths, machines features, coordinates any outside processing, inspects specified features, preserves identification as needed, and releases the completed parts with documented records. This connected scope reflects the inputs in NIST’s manufacturing-planning research; it does not imply that the paper defines one mandatory service package.

Machining can involve CNC milling, CNC turning, boring, grinding, wire EDM, or a sequence of operations. Commercial proposals can also include design-for-manufacturing advice, raw material purchasing, first article inspection, production support, surface-finish coordination, packaging, and delivery. Itemize these activities because two quotes with the same price can cover very different responsibilities.

That scope difference is important in evaluating an online CNC machining service against a direct machine shop. An automated process may be effective for common prototypes, while a manual engineering review is usually valuable when the work has interacting tolerances, nonstandard stock, traceability requirements, special inspection, or a move to production parts.

Where the service boundary should be visible

Each quote should define where the supplier’s scope begins and ends. If the buyer selects the alloy, the supplier can be responsible for buying the designated stock and preserving its identity without assuming responsibility for final pressure, temperature, fatigue, or corrosion life. If the supplier recommends an alternative, document the approval process and technical comparison.

This scope boundary also applies to finishing and assembly. A machining source can provide heat treatment, plating, passivation, welding, or inspection through another qualified organization and still needs to state who orders, approves, documents, handles nonconformance, and maintains traceability. “Included” is a cost statement; it isn’t a responsibility map.

• Design owner: validates function, material compatibility and the approved design.
• Manufacturing owner: defines an effective route and directs processes to stay within scope.
• Inspection owner: performs or directs the required inspections and communicates results under the agreed-upon rule.
• Buyer: clears open requirements, authorizes permissible changes, and accepts the commercial terms.

Common service terms, translated into buying questions

Search results name the same broad manufacturing process with several overlapping labels. That terminology can become a capability shortcut, so the chart below translates each label into a buying question.

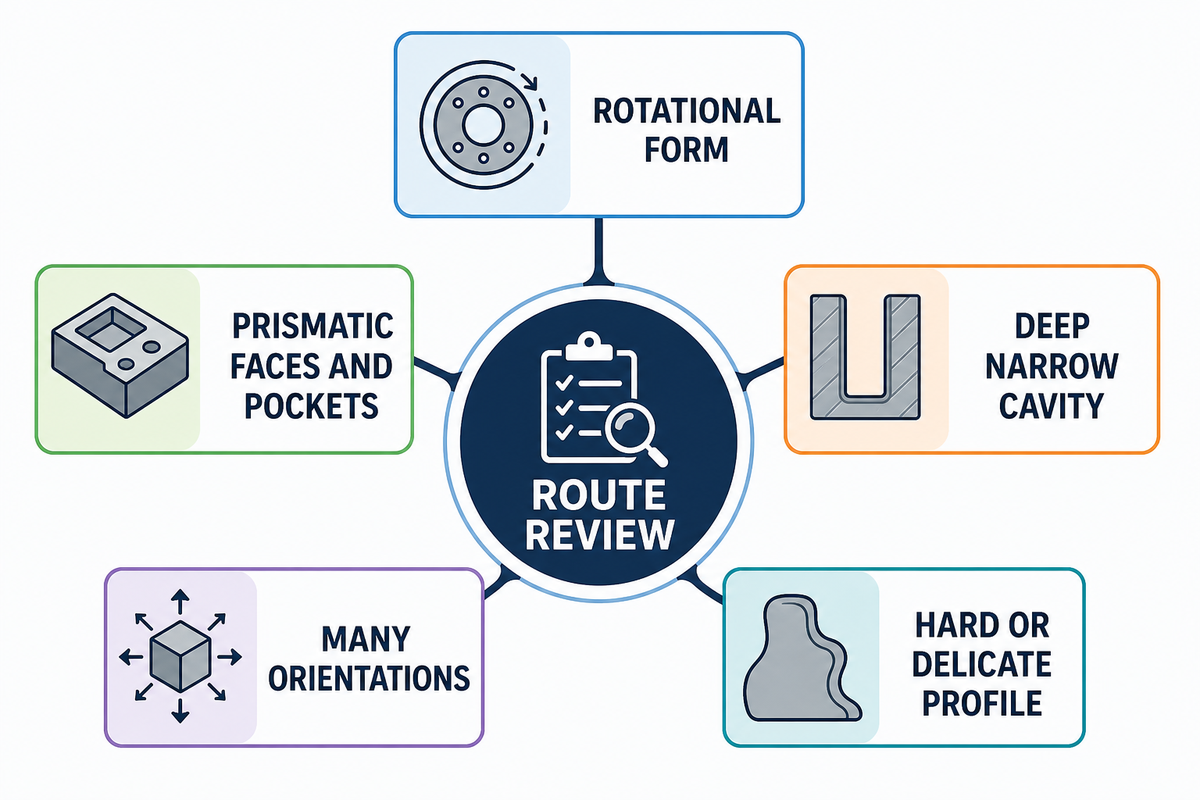

Choose the Machining Route by Geometry

Select a safe, appropriate, and cost-effective machining route from the part geometry, material, size, tolerance, surface condition, volume, and production rate. A 5-axis CNC machine isn’t automatically the most accurate choice; it adds value when extra axis movement or fewer re-clamps reduces a risk tied to the part’s function. For a structured first pass, use Zhenling’s CNC process-line router.

The Feature-Control Route Map

Use the Feature-Control Route Map to convert CAD features into manufacturing questions. For each design-critical feature, identify the cutting access, the datum that locates it, the setup in which it will be produced, and the inspection access needed to verify it.

Review candidate machining routes by the number of datum transfers, not just the machine axes involved.

If two features must remain within close tolerance, producing them in one stable setup can matter more than using the highest-end machining center. Conversely, simple parts often achieve better throughput and consistency on standard CNC mills and lathes with proven fixtures.

This checklist adapts the connected planning inputs in NIST manufacturing-planning research: material, form, dimensions, tolerance, surface condition, volume, and rate. That source is a manufacturing-planning framework, not a CNC machine-selection standard; the route questions above are this guide’s application of those inputs.

A worked routing example

Consider a valve body with a primary bore, a sealing face, several cross-holes, and mounting features on different orientations. Route review should begin with the bore-to-face relationship, the datum system used in assembly, accessible tool lengths, burr risk at intersecting holes, stock condition, and required quantity—not with a machine label.

One shop can rough the blank, finish the bore and sealing face in one setup, index the cross-holes in another, then deburr and inspect the controlled relationships. Another can use a multi-axis setup to reduce re-clamping. Either route can work; the stronger proposal explains how it maintains functional relationships and reaches the same datums during inspection.

As volume increases, the preferred route can change. Production can justify dedicated fixtures, in-machine probing, special tooling, or a different stock form. Treat the route as a controlled decision that evolves with quantity and evidence, not as a permanent label.

Prepare the Model and Drawing

Nominal 3D CAD describes shape, but it rarely communicates every requirement that controls acceptance. Quote-ready packages normally combine a controlled model with a 2D technical drawing or equivalent model-based definition that identifies dimensions, datums, geometrical controls, threads, edge conditions, surface texture, material, finishing, and inspection notes.

Before issuing the RFQ, state which file is authoritative when the model and drawing disagree. Include a unique part number, revision, units, scale note, and release status. Remove obsolete files from the package instead of asking the machine shop to infer the latest version from filenames.

1. Lock the geometry: release one controlled CAD revision and one approved neutral file.
2. Select datums: identify the functional coordinate system so manufacturing and measurement use the same basis.
3. Define special features: call out threads, fits, sealing surfaces, intersecting holes, thin walls, and protected areas.
4. Resolve defaults: state units, unspecified edge treatment, the general tolerance note, and the drawing-standard edition.
5. Mark evidence needs: distinguish characteristics that require recorded results from those needing normal shop inspection.

ASME Y14.5 establishes dimensioning and geometrical-tolerancing practices for drawings, digital models, and related documentation. Having the standard name alone in an RFQ doesn’t hold much value; what matters is a common understanding of feature relationships, modifiers, datums, and the applicable edition.

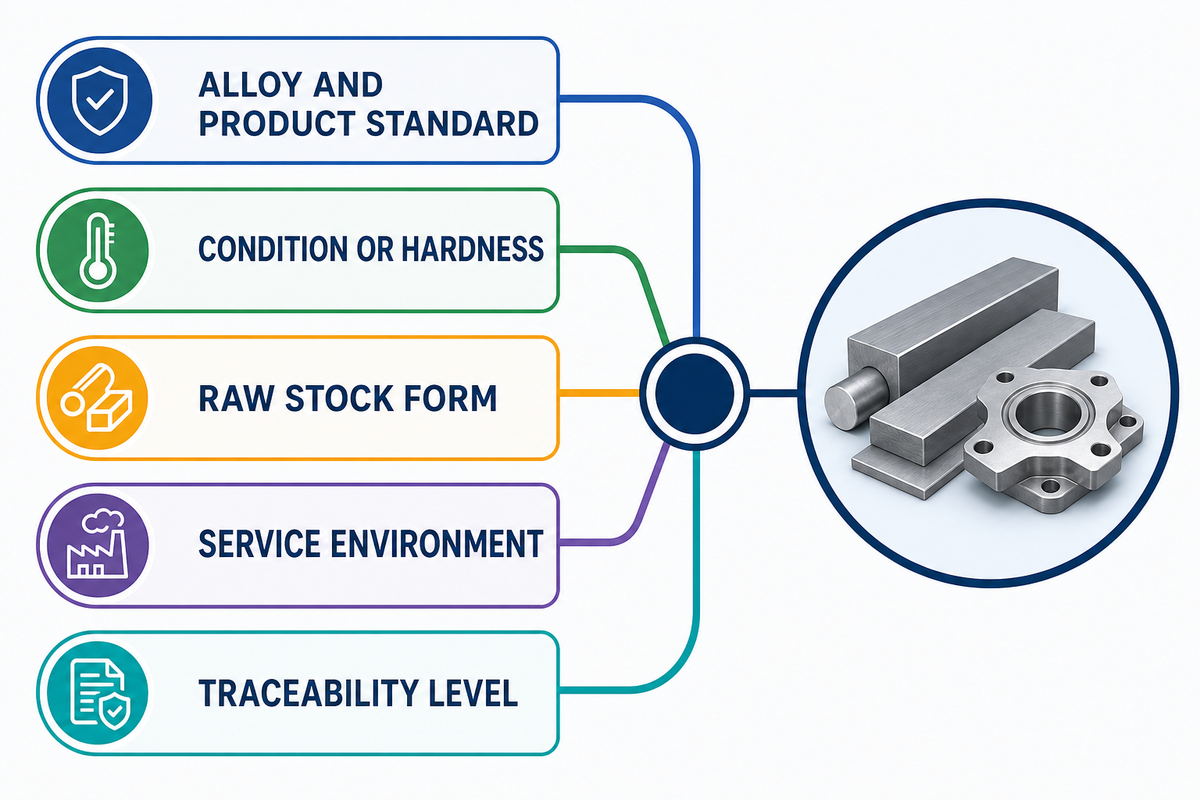

Match Material to Function and Machinability

Define material beyond a familiar trade name. A complete specification can include grade, product form, condition or temper, heat-treatment state, permissible substitutes, service environment, hardness range, and any traceability certificate needed for the application.

Machinability and mechanical properties both depend on material condition. Tensile strength, impact strength, toughness, and corrosion resistance apply to a specified product form and condition; don’t transfer them from a general material page as universal design values. Material is also one of the connected inputs identified in NIST’s manufacturing-planning research. For example, a reviewed 316/316L supplier data sheet explicitly attaches its reported A240 minimum properties to a stated condition.

Machinability isn’t a single scale from easy to hard. Carbon steels, alloy steels, stainless steels, nickel-based alloys, aluminum alloys, and engineering plastics create different combinations of chip-control, heat, tool wear, work hardening, burr formation, and dimensional movement. Material selection should favor a specified condition that meets the functional requirement while remaining practical to manufacture.

If the specification permits an alternative, define the approval route before quotation. “Equivalent material” should mean a documented comparison against the controlling chemical, mechanical, dimensional, environmental, and certification requirements, followed by buyer approval—not any grade with a similar description.

Specify Tolerances and Surface Texture Without Overpaying

Use a tight tolerance only where it protects function, assembly, sealing, motion, balance, or interchangeability. A blanket tight tolerance forces fixture, tool, environmental, measurement, and process uncertainty onto every characteristic—even those that don’t affect the part’s performance or life.

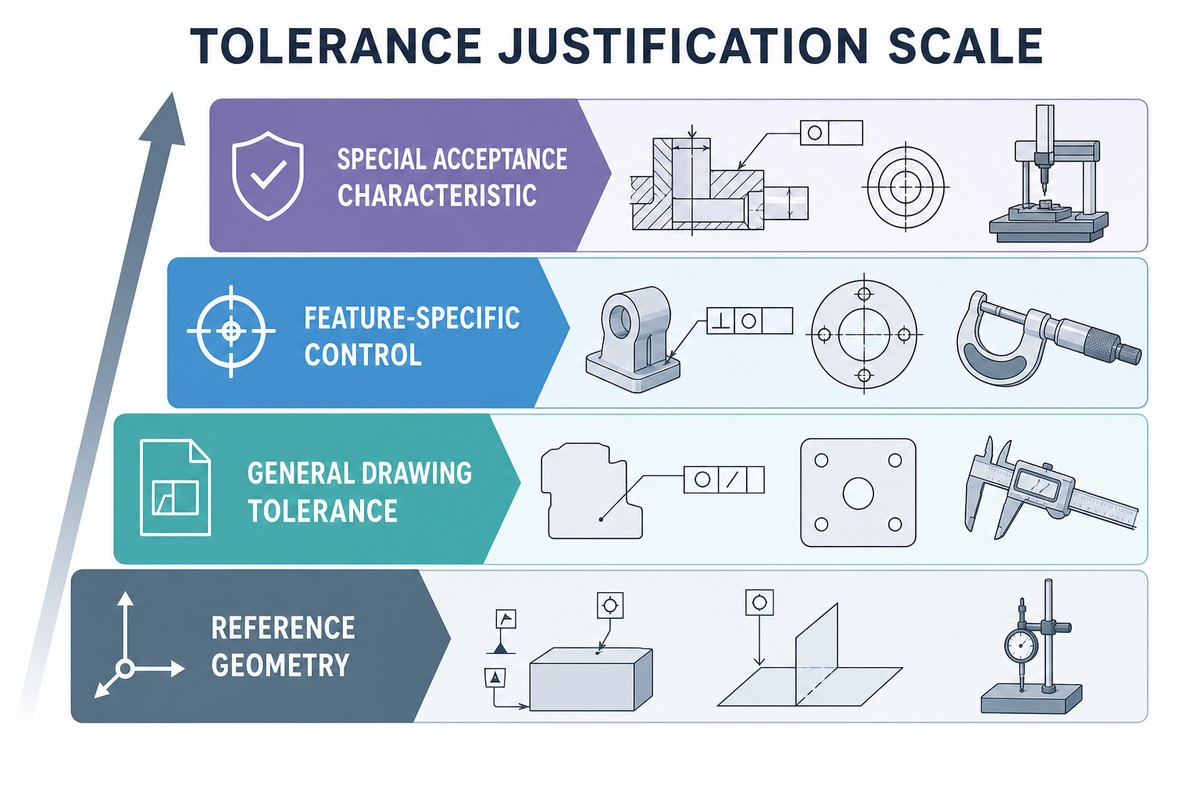

The Tolerance Justification Scale

The Tolerance Justification Scale has four control levels. Each level needs a functional reason and an inspection method that can verify it.

1. Reference geometry: nominal information that doesn’t control acceptance.
2. General drawing tolerance: default limits for dimensions without individual indications.
3. Feature-specific control: a stated limit on size, location, orientation, or form.
4. Special acceptance characteristic: a named feature with a defined method, sampling rule, or capability record.

Standards have revision control too. ISO 2768-1 remains current after its 2022 review, and ISO identifies a future consolidated replacement path. ISO 22081 is current for general geometrical and size specifications, while ISO lists ISO 2768-2 as withdrawn. None of that rewrites an existing agreement; it means a new drawing should identify the intended document and edition instead of relying on an inherited note.

Surface texture needs similar rigor. Terms such as “smooth” or “polished,” or an Ra value without context, leave important questions unanswered: which parameter applies, what evaluation length is used, and do direction, process allowance, protected regions, or measurement method need definition? ISO 21920-1 covers the indication of profile surface texture on technical product documentation.

An illustrative unit-consistency audit

These are illustrative values, not recommended default CNC tolerances or design suggestions. Their purpose is to show how a buyer can find conflicting specifications of units, precision, or scope before releasing a drawing for quotation.

Understand Quote and Lead-Time Drivers

Total machining cost includes material, programming, setup, cutting time, tooling, inspection, outsourced finishing, failure and rework risk, documents, and business overhead. Machine time is visible, but setup and uncertainty often explain why CNC quotes differ for apparently identical projects. The connected input set in NIST’s manufacturing-planning research helps explain why geometry alone cannot normalize those proposals.

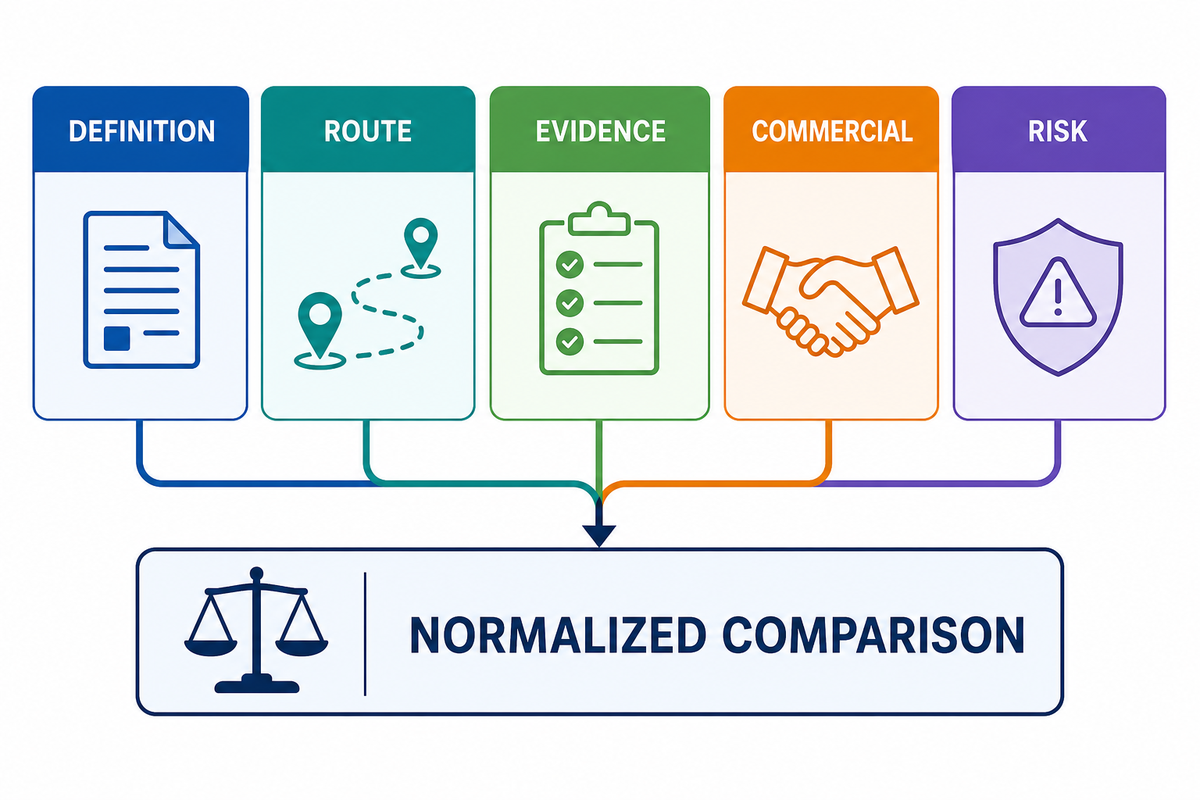

The Quote-Variance Taxonomy

Use the Quote-Variance Taxonomy to sort the differences between apparently identical proposals before comparing totals. Ask each supplier to classify variances into these five categories:

Early information from an instant quote can screen standard custom parts, but it isn’t automatically a complete production quote. Geometry analysis alone can miss the interaction between material condition, a geometrical tolerance, post-machining treatment, and inspection records. Use the fast number for screening, then require a reviewed scope when the consequences are material.

Lead time also needs to be decomposed. Calendar time can include drawing review, raw-stock availability, programming, fixture preparation, queue time, machining, outside finishing, inspection, report approval, packaging, and transport. A promise that starts “after approval” is incomplete unless the approval event and required inputs are defined.

• Reduce machining time by reviewing hard-to-reach internal features, extreme depth-to-width ratios, and tight inside corner radii.
• Reduce setup risk by aligning functional features to stable datums.
• Minimize inspection costs by stating precisely in the specification which characteristics you truly need recorded rather than requesting full records for all nominal dimensions.
• Reduce purchasing delay by confirming stock form, permitted alternates, quantity breaks, and outside-process specifications before bid.
• Minimize rework costs by defining the final version/revision number before ordering materials or beginning CNC programming.

Define Inspection and Traceability Evidence

Base inspection records on the decision they support: incoming acceptance, first article approval, in-process control, final release, or continued production monitoring. Name the feature, measurement method, sampling or control plan, tolerance, decision rule, report format, and responsibility for any disputed result.

Metrological traceability links a measurement result to a reference through a documented, unbroken calibration chain. The JCGM International Vocabulary of Metrology notes that traceability does not by itself ensure that measurement uncertainty is adequate for a given purpose or that mistakes are absent. The parties must separately define the feature-specific method, access, environment, uncertainty treatment, and decision rule used near a tolerance limit.

NIST’s metrological traceability guidance provides a practical institutional explanation of the same boundary. The JCGM vocabulary above remains the direct source for the definition and its limitation.

Don’t confuse a company-level certification with order-specific evidence. A certification can define the scope of a management system, but it doesn’t identify a particular material lot, report a measured dimension, define a sampling plan, or assign production-test responsibilities. Ask for the document pack generated for the order.

What happens near the tolerance limit?

An inspection plan is incomplete if it says only “measure with calibrated equipment.” When a bore is close to its upper acceptance limit, temperature, cleanliness, alignment, contact method, instrument resolution, operator technique, and measurement uncertainty can affect the result. A traceable calibration chain doesn’t make those effects disappear.

For a high-consequence characteristic, agree what happens when uncertainty affects the conformity decision near a limit. The contract can require a stated decision rule, repeat measurement under controlled conditions, an alternative method, buyer review, or another defined disposition. The guide doesn’t prescribe one universal rule; it requires the parties to avoid inventing one after a dispute.

Check measurement access before machining. If a scheduled probe, gauge, profilometer, or coordinate measuring machine can’t reach a feature, the plan may need a different fixture, section, replica technique, process-control substitute, or design change. Find that conflict in the RFQ, not at final inspection.

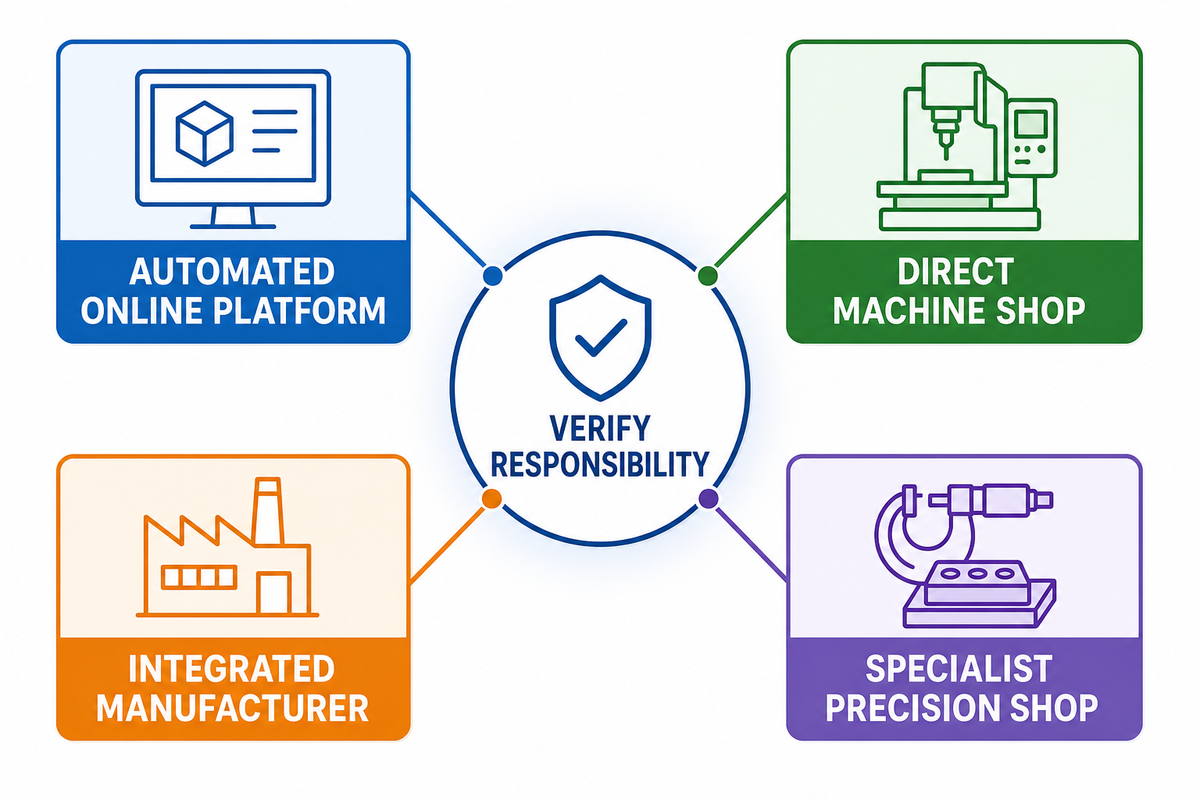

Compare Supplier Models and Capability Claims

Compare suppliers only after normalizing process scope, subcontracting, inspection, change control, communication, and exclusions. A marketplace, broker, integrated manufacturer, and specialist machine shop can all be suitable, but they distribute responsibility differently. The drawing and model practices covered by ASME Y14.5 give the parties a common product-definition basis; they do not verify a supplier’s process capability.

Replace equipment-list comparison with evidence questions. For a 5-axis claim, ask for the proposed route and the setup risk it removes. For a tolerance claim, ask which feature, size, material, quantity, and inspection conditions support it. For an “in-house” claim, ask which legal entity performs each operation and which work goes to approved partners.

Communication needs its own test. Send the same limited question set to each vendor, then compare how well the answers expose conflicts, ask purpose-driven questions, declare assumptions, and assign responsibility. Reliable CNC machining relationships become visible during risk negotiation, not through a polished capability page alone.

Evidence to request before supplier approval

Make supplier approval proportional to part risk. A low-risk one-off bracket can need a drawing review and basic commercial checks. A repeated fluid-control component with material traceability, sealing surfaces, and special processing can justify a route review, sample report, equipment and gauge check, subcontractor map, nonconformance workflow, and change-notification agreement.

Ask for examples with confidential details removed where possible: a blank inspection form; an anonymized material-to-part relationship; an outline of calibration status workflow; or the input fields for outside processing control. These artifacts serve as real-world demonstrations without forcing a supplier to share a rival customer’s proprietary data.

Build an RFQ That Can Be Quoted Correctly

A controlled CNC RFQ package combines controlled geometry, technical specifications, evidence requirements, and commercial context. It isn’t extra paperwork; it reduces ambiguity before that ambiguity becomes price variation, schedule delay, or an inspection dispute. Where geometrical tolerancing applies, the package should identify the intended edition of ASME Y14.5 rather than leave the supplier to infer it.

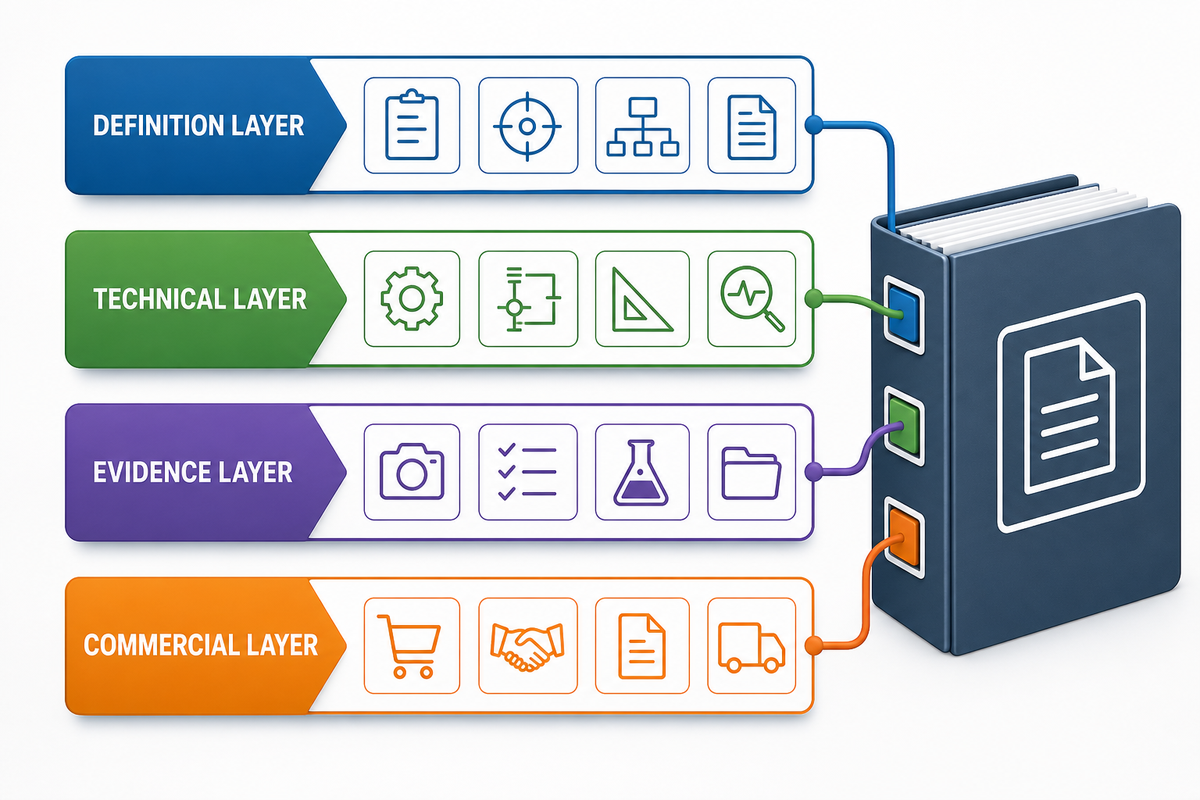

Build the RFQ Package

1. Definition Layer: Part Number, Revision, STEP or native CAD format, Drawing Number, Units of Measure, Authority of Rule, Required Quantity.
2. Technical Layer: Specification for Material and condition, Datum Reference, tolerance features, Threads, Surface Finish, Heat Treatment, Coatings, Marking, Protected Features.
3. Evidence Layer: scope of the first piece evaluation, characteristics to be measured, documentation of materials, sampling strategy, layout and format of the evidence report, length of retention for evidence, and any specific confidentiality or restricted content requirement.
4. Commercial Layer: Target prototype & production quantity, delivery address, required delivery date, preferred packaging method, shipping terms (Incoterm), quotation validity period, ownership of tooling, and expectation for managing changes.

Ask suppliers to list assumptions in a structured table. It can cover stock form, production route, outsourcing, standard interpretations, measurement scope, certificates, excluded features, minimum lot, quantity breaks, the lead-time trigger, and open technical questions. A consistent format enables fair comparison even when suppliers use different manufacturing models.

For regulated or government work, add information-security, export-control, record-retention, or customer-approval requirements only when they actually apply. Don’t copy such clauses into every RFQ as decoration. They can change who may receive files, where data may be processed, and which suppliers are eligible.

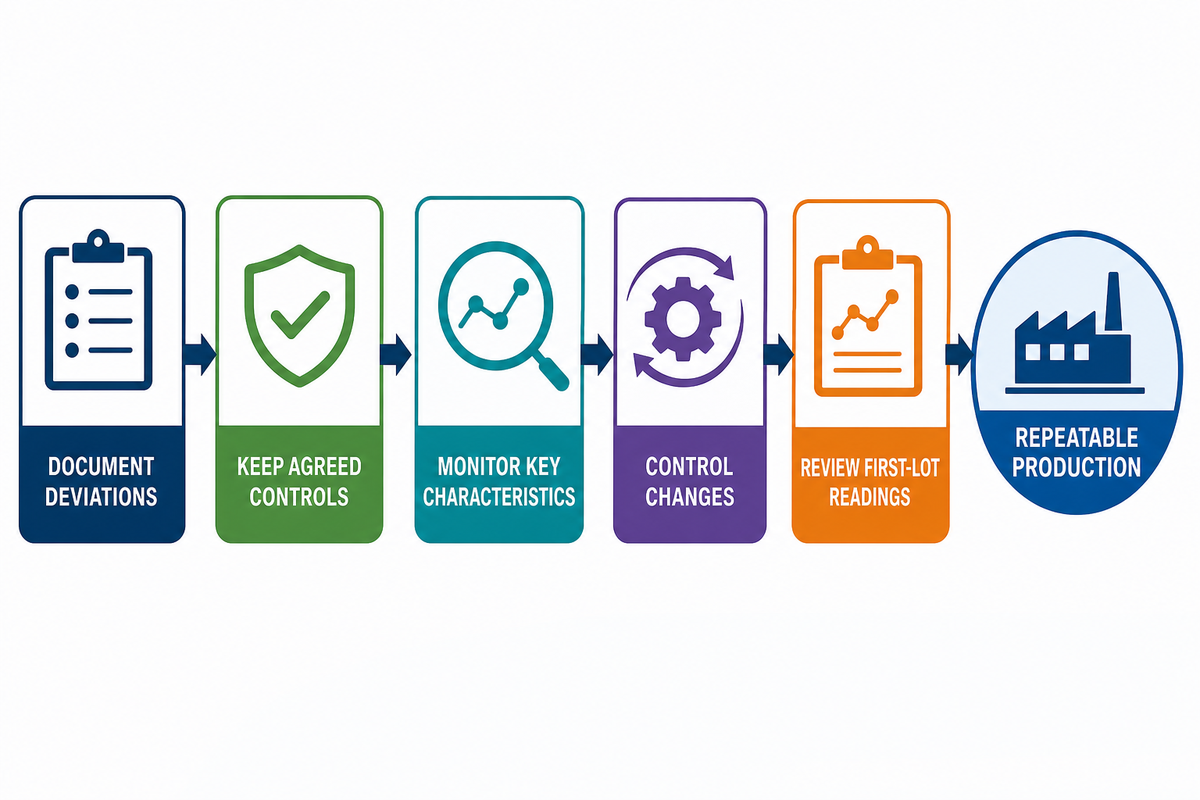

Plan the Prototype-to-Production Handoff

An accepted first article shows that the inspected item or items met the checked requirements; it doesn’t prove that the manufacturing process is stable. A production handoff should capture the approved stock condition, tooling, fixturing, programs, measurement methods, outside processes, and lessons needed to make the result repeatable.

NIST’s process-stability guidance treats stability as behavior observed over time, not as an inherent property of one machine or one accepted part. Its statistical examples aren’t universal production rules, but the practical lesson is clear: a good first article and reliable long-term production answer different questions.

• Record any prototype concession or waiver, then decide whether the resulting modification needs a design revision or another agreed control.
• Keep the agreed process and controls—from design release through final inspection—in effect as each production lot begins.
• Use the agreed control plan to identify which characteristics affecting fit, sealing, motion, or safety need monitoring over time.
• Define who must be contacted and which approval level applies before changing an approved material source, origin, fixture, program revision, or manufacturing process.
• Review the agreed first-lot evidence before reducing inspection frequency or increasing the batch quantity for later production runs.

Trends That Matter to Buyers

After the prototype-to-production handoff, trends add information that a single reading can’t provide. Measurements over time can reveal tool wear, fixture movement, thermal drift, or a change in process behavior, helping connect the drawing, production route, inspection evidence, and engineering intent. The distinction between one conforming observation and behavior over time is central to NIST’s process-stability discussion, though its examples are not a prescribed CNC sampling plan.

Don’t treat a patent, research prototype, or product announcement as proof of widespread adoption or economic value. Buyers should ask what is deployed on the proposed route, which signal is measured, what decision it changes, and what evidence can be reviewed.

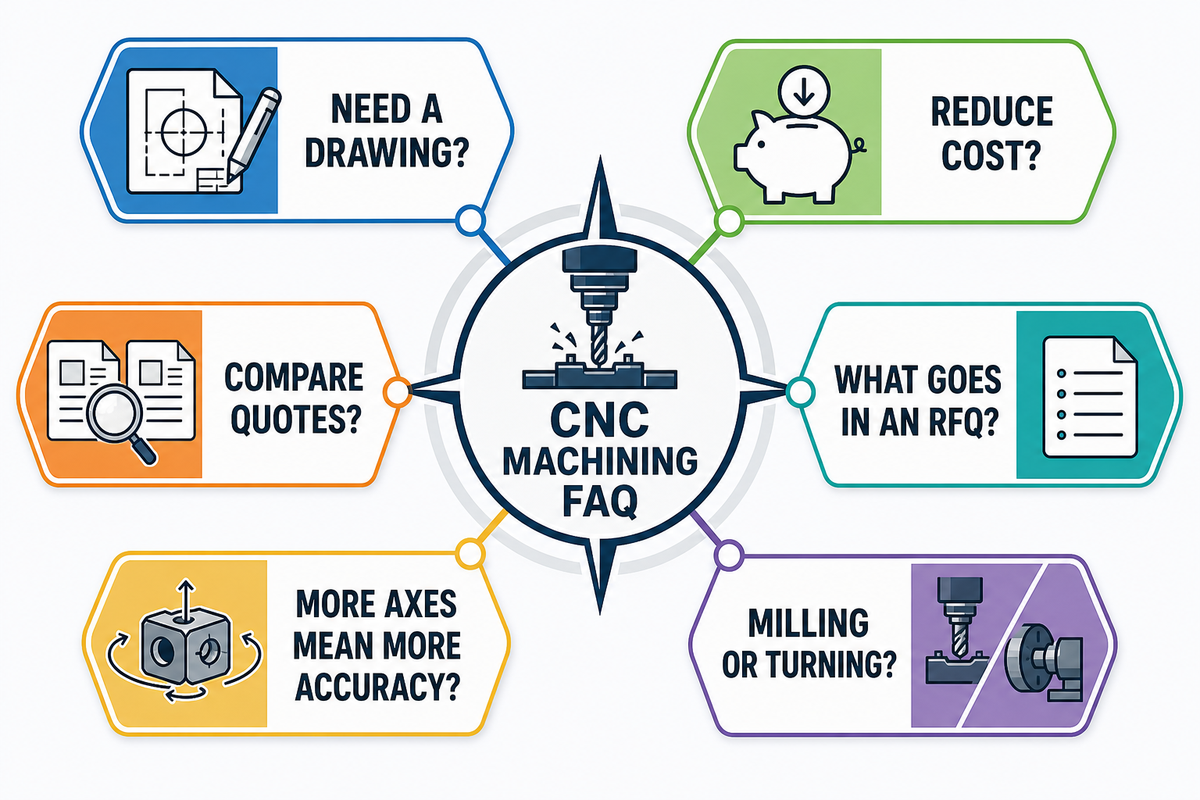

CNC Machining Service FAQs

Conclusion: Move From a Search Term to a Controlled Part Definition

After resolving the common RFQ questions, move from “who can make this?” to “which exact product definition, route, evidence, and commercial scope are we asking a supplier to control?” That transition reduces hidden assumptions and makes capability claims testable against the part.

Begin with the Feature-Control Route Map, apply the Tolerance Justification Scale only where function requires it, normalize proposals with the Quote-Variance Taxonomy, and release the controlled RFQ package. These tools give engineering, quality, and purchasing a common language before the first cut.

References & Sources

• NIST: Preliminary Design and Manufacturing Planning Integration
• ASME Y14.5: Dimensioning and Tolerancing
• ISO 2768-1: General tolerances for linear and angular dimensions
• ISO 22081: General geometrical and size specifications
• ISO 21920-1: Profile surface texture indication
• JCGM VIM 2.41: Metrological Traceability
• NIST: Metrological Traceability
• NIST/SEMATECH e-Handbook: Process Stability
• Rolled Alloys: 316/316L Stainless Steel Data Sheet
